| 126 Standard Chassis 1981- 1991 |
| Models |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SEC. |
| |
|
|
The worlds largest selection of
new, used and reconditioned Mercedes-Benz 126 chassis air conditioning and
heating parts. We have hoses, climate control units, compressors, vacuum
valves, expansion valves, receiver/dryer units, temperature switches, HVAC
valves, heater control regulators, mono valve repair kits, control valves,
heater hoses vacuum change over valves, 3/2 valves. Whether you're restoring
a classic or keeping your daily driver running and looking its best we have
the parts you need. |
|
|
|
|
|
 |
| Compressor (A) |
|
| |
 |
| Compressor (B) |
|
| Air conditioning
compressor |
| A 300SD, 1981-1985 |
| B 380SE,500SEC, 560SEC |
| |
| Must be installed as per
manufacturers specs and proper procedure to maintain warranty. Take the
vehicle to a certified shop and have the air conditioning system
depressurized. Specify year and model when ordering. 3 mo warranty. |
| Qty. required 1 |
|
|
|
|
|
Back to Top |
|
|
|
 |
| Receiver/Dryer
(81-91) |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SEC. |
| A Behr |
| B URO |
| Whenever you do any major work to
your AC (compressor, hoses etc.) replace the dryer. Includes seals (not
shown) |
| Qty. required 1. new only. |
|
|
|
|
| |
|

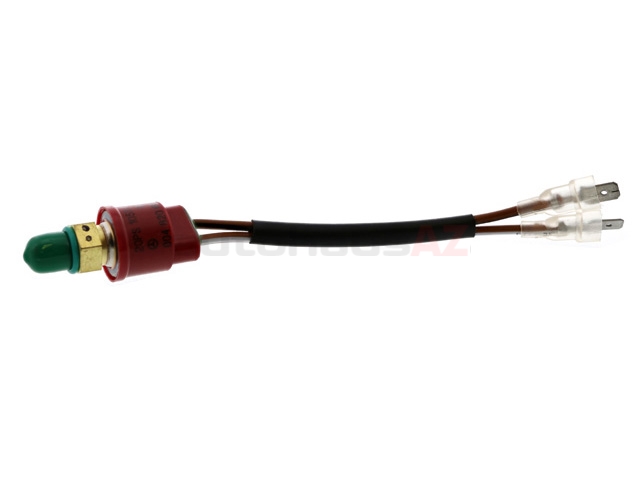

| Temperature Switch |
 |
| (A) |
|
| |
 |
| (B) |
|
| Temperature switch
(81-91) |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SEC. |
|
A 9.5mm thread (red) |
|
B 6mm thread - 2 wire (53 deg Celsius, early version) |
| |
| Qty. required 1 |
|
|
|
|
|
|
|
| |
|
| Temperature switch 300SD |
| |
| C Green 10mm thread - has lower temp
rating. 2 wire: w/ 10mm threads. |
| Recommended upgrade when using 134A |
| Qty. required 1 |
|
|
|
|
|
|
|
| A/C Expansion Valve |
 |
| |
|
|
| A/C Expansion
Valve. (81-91) |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SEC. |
|
A Expansion valve - for R12 and
R-134A |

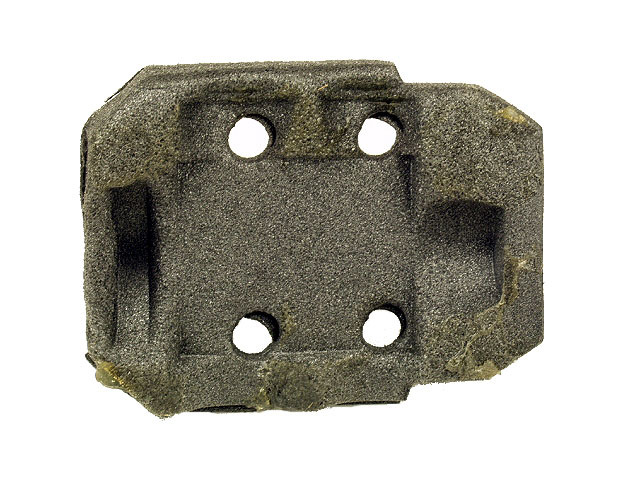

| B Mount/Pad for expansion
valve |
| Qty. required 1 |
|
|
|
|
| |
|
|
|
 |
| A/C, Heat Climate
Control Unit. |
| 300SD, SEC, 380SE, 380SEC,420SE,
500SEC, 560SEC. (81-85) |
|
A Climate control unit (Remanufactured) |
| Remanufactured 3
month warranty. |
| Price includes 75.00 refundable core
charge. |
| Qty. required 1 |
|
|
|
|
|
|
|
| |
 |
| Remanufactured 3
month warranty. Includes $50.00 core charge. |
| Qty. required 1 |
|
|
|
|
|
Back to Top |
|
| Heater Control Temp Regulator |
|
 |
| Heater Control Unit
Temperature Regulator. |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SEC. |
|
A Temp regulator. Includes 40.00 core charge - OUT
OF STOCK |
| |
| Temperature regulator for climate
control unit. |
| Qty. required 1 |
|
|
|
|
| |
|
|
|
 |
| Climate Control
vacuum power change over valve. |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SEC. (81-85) |
|
A Valve - Qty. required 5. |
| (HVAC controls under dash behind climate
control unit, operates dampers) |
| Qty. required 5. |
|
|
|
|
| |
|
|
|
 |
| Climate Control
Vacuum Valve. |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SEC. (78-85) |
| B
2/1 way, yellow (in engine
compartment) |
| Qty, required 1 |
|
|
|
|
|
Back to Top |
|
|
|
 |
| Heater control
mono valve repair kit. |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SEC. (81-85). |
| For mono electromagnetic water valve. |
| Qty. required 1 |
|
|
|
|
| |
|
|
|
 |
| Heater control
valve. |
| A 240D, 300D,TD,CD. 1981 thru 1985. |
| |
| |
|
|
|
|
|
Back to Top |
|
|
|
 |

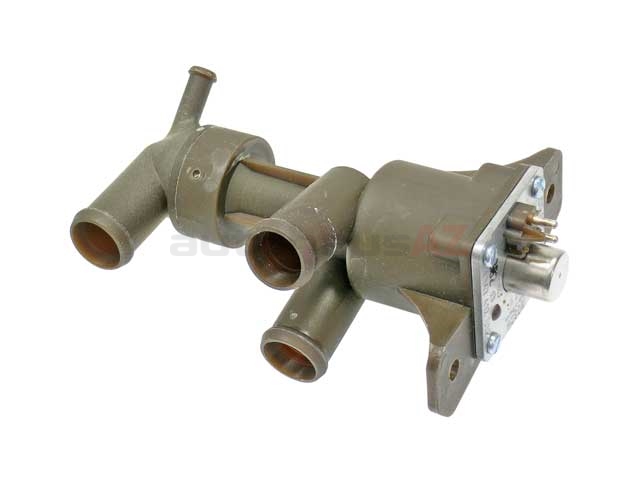

| Heater control
valve solenoid. Mono Valve |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SEC. (81-85). |
| A Heater Control Valve - Mono Valve,
Genuine Mercedes |
| B Heater Control Valve - Mono Valve, MW Reman |
| |
| |
|
|
|
|
| |
|
| A/C Hoses |
 |
| (A) |
|
| |
 |
| Receiver/dryer to condenser. (B) |
|
| A/C Hoses |
| 380SE, 380SEC,420SE,
500SEC, 560SEC. (81-85) |
| A Suction line at compressor |
| B Receiver/dryer to condenser |
| |
|
|
|
|
|
|
|
|
|
 |
| federal cars for A/C comp with flange
connection under engine. (C) |
|
| A/C Hoses |
| 300SD
(81-85) |
|
C At A/C comp with flange connection
|
| |
|
|
|
|
|
|
| Heater Core |
 |
| Heater core (A) |
|
| |
 |
| Heater pipe (B) |
|
| A/C Hoses - 300SD. 1981
thru1985 |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SE,SEC. (81-85) |
|
A Heater Core |
|
B Heater Pipe Set |
|
Pipe set should be replaced with heater core in most cases due to
corrosion and access difficulty. 1 set per car. |
|
|
|
|
|
|
Back to Top |
|
|
|
| Back to Top |
| |
| Heater Hoses 126 Chassis |
 |
| Mono valve to feed pipe at fire wall (A) |
| |
|
| |
| |
 |
| Mono valve to return pipe from aux water |
| pump (B) |
|
| Heater hoses |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SE,SEC. (81-85) |
|
A Heater hose - Heater core to water valve Left side |
|
B Heater hose - Heater core to water valve Right side |
| |
| Match your pipe shape to pictures shown. |
|
|
|
|
| |
| |
 |
| Mono valve to feed pipe at fire wall (C) |
| |
|
| |
 |
| Mono valve to return pipe from aux water |
| pump (D) |
|
| Heater hoses |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SE,SEC. (81-85) |
|
C Heater hose - mono valve to feed pipe at fire wall. |
|
D Heater hose - mono valve to return pipe from aux water
pump. |
| |
| Match your pipe shape to pictures shown. |
|
|
|
|
|
Back to Top |
| |
 |
| Mono valve to feed pipe at fire wall (E) |
| |
|
| |
 |
| Mono valve to return pipe from aux water |
| pump (F) |
|
| Heater hoses |
| 300SD,SE, 380SE, 380SEC,420SE,
500SEC, 560SE,SEC. (81-85) |
|
E Heater hose - mono valve to feed pipe at fire wall. |
|
F Heater hose - mono valve to return pipe from aux water
pump. |
| |
| Match your pipe shape to pictures shown. |
|
|
|
|
| |
| |
|
